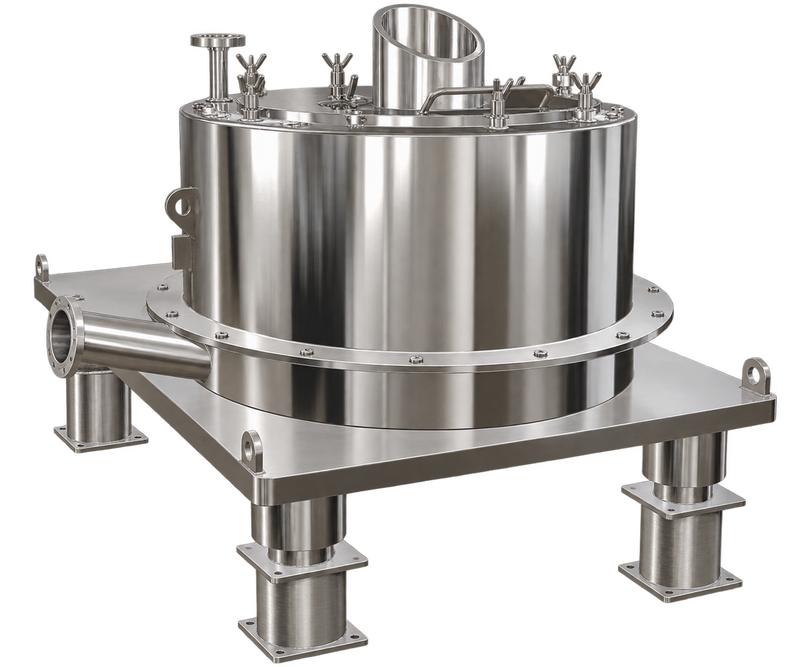

Manual Top Discharge Centrifuge
Manual Top Discharge is a regular and widely demanded 4-point suspension centrifuge used across the pharmaceutical, chemical, R&D plant, cosmetic and food industries. The equipment is designed for applications where solids need to be removed manually from the top side of the equipment. Its simple construction and manual top discharge arrangement make it a practical centrifuge solution for various process requirements.
Material of Construction
The Manual Top Discharge Centrifuge is available in:
- Carbon Steel
- Stainless Steel
- Hastelloy
- Other MOC options as required
Fluoropolymer Coating & Lining
Fluoropolymer coatings and lining options can be provided on contact surfaces, including:
Coating can be provided on both contact parts and the exterior body (non-contact surface). Exterior coating helps provide protection from spillage and corrosive atmosphere.
- Halar (ECTFE)
- PVDF
- ETFE
- Teflon (PFA)
- Rubber Lining
4-Point Suspension Centrifuge
Manual Top Discharge is a 4-point suspension centrifuge designed for manual removal of solids from the top side of the equipment.
Customised Configuration
The centrifuge can be provided with various accessories and a customized design according to the requirements of the application.
Available Accessories
The Manual Top Discharge Centrifuge can be equipped with:
- Inverter Drive
- FLP Panel
- N2 Purging Arrangement
- CIP Arrangement
- Zero Speed Interlock
- Heel Blow Back
- Vibration Tripper Limit Switch
- Vibration Monitoring System
- FLP Switch / Proxy Sensor
- N2 Blanketing System
- Customized Design
Models
| Basket Inner Diameter | Basket Depth | Working Capacity under lip | Basket load (Max)@ Bulk density 1 gm/cc | Basket Revolutions | G-force | Filteration Area | Motor Power | Length | Width | Height | Empty Weight | AE 18"MTD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 457 mm. | 300 mm. | 24 lts. | 24 kgs. | 900 rpm. | 206.2 G. | 0.43sq.mts. | 2kW. | 1050 mm. | 750 mm. | 1300 mm. | 800 kgs. | AE 24"MTD |
| 610 mm. | 300 mm. | 48 lts. | 48 kgs. | 900 rpm. | 275.2 G. | 0.57sq.mts. | 3kW. | 1350 mm. | 1000 mm. | 1500 mm. | 1150 kgs. | AE 36" MTD |
| 915 mm. | 450 mm. | 169 lts. | 169 kgs. | 900 rpm. | 412.8 G. | 1.29sq.mts. | 7.5kW. | 1800 mm. | 1250 mm. | 1900 mm. | 2750 kgs. | AE 48" MTD |
| 1220 mm. | 450-500 mm. | 294-327 lts. | 294-327 kgs. | 900 rpm. | 550.4 G. | 1.72-1.92sq.mts. | 15kW. | 2000 mm. | 1500 mm. | 2100 mm. | 4200 kgs. | AE 60" MTD |
| 1524 mm. | 450-600 mm. | 467-519 lts. | 467-519 kgs. | 800 rpm. | 543.3 G. | 2.15-2.87sq.mts. | 20kW. | 2500 mm. | 2000 mm. | 2100 mm. | 5500 kgs. |
Usage
Manual Top Discharge Centrifuges are widely used in:
The equipment is suitable for process requirements where manual removal of solids from the top side is required.
- Pharmaceutical Industry
- Chemical Industry
- R&D Plants
- Cosmetic Industry
- Food Industry
Advantages
- Simple in construction
- Easy manual removal of solids from the top side of the equipment
- Less solid loss during the process
Manual Top Discharge Centrifuge for Pharmaceutical & Chemical Applications
Advance Expertise Technology provides Manual Top Discharge 4-point suspension centrifuges for pharmaceutical, chemical, R&D, cosmetic and food industries.
The equipment is available in Carbon Steel, Stainless Steel and Hastelloy, with fluoropolymer coating and lining options including Halar (ECTFE), PVDF, ETFE, Teflon (PFA) and Rubber Lining. Contact and non-contact exterior surfaces can also be coated according to the requirement.
With accessories including Inverter Drive, FLP Panel, N2 Purging, CIP, Zero Speed Interlock, Heel Blow Back, vibration protection and monitoring systems, FLP Switch/Proxy Sensor and N2 Blanketing, the equipment can be configured to meet specific process requirements.
Frequently Asked Questions
What is a Manual Top Discharge Centrifuge?
Manual Top Discharge is a 4-point suspension centrifuge used across pharmaceutical, chemical, R&D, cosmetic and food industries, with manual removal of solids from the top side of the equipment.
What materials are available?
The centrifuge is available in Carbon Steel, Stainless Steel and Hastelloy.
What coating options are available?
Contact surfaces can be provided with Halar (ECTFE), PVDF, ETFE, Teflon (PFA) and Rubber Lining. Coating can also be provided on the exterior body/non-contact surface for protection from spillage and corrosive atmosphere.
What accessories are available?
Available accessories include Inverter Drive, FLP Panel, N2 Purging Arrangement, CIP Arrangement, Zero Speed Interlock, Heel Blow Back, Vibration Tripper Limit Switch, Vibration Monitoring System, FLP Switch/Proxy Sensor, N2 Blanketing System and Customized Design.
What are the advantages of Manual Top Discharge?
Its key advantages include simple construction, easy manual removal of solids from the top side and less solid loss during the process.
