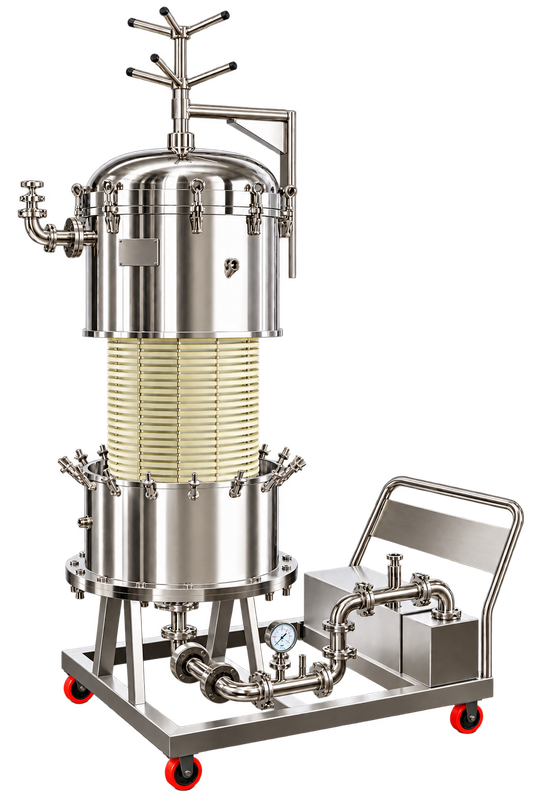

Sparkler Filter (Zero Hold Up)
Advanced Expertise Technology Pvt Ltd offers a range of GMP model Zero Hold Up Sparkler Filters designed for filtration applications across pharmaceuticals, biotechnology, API, bulk drugs, chemicals, distilleries, food and other related industries. A Sparkler Filter operates by filtering impure liquid through filter media positioned between horizontal plates. As the liquid arrives on top of each horizontal plate under increasing pressure, the filter media holds back the impurities while allowing the filtrate to pass through.
GMP Zero Hold Up Sparkler Filter
The filtrate is collected through the centre by interlocking cups, which direct the filtrate to the outlet of the filter.
The Zero Hold Up Sparkler Filter is available in different configurations and materials of construction to suit varying filtration requirements, including requirements for holding capacity and filtration area.
Material of Construction
Sparkler Filters are available in:
We also offer various types of coating for wetted parts, including:
Hastelloy is also available for friction parts and other requirements.
- SS304
- SS316
- SS316L
- HASTELLOY
- PP
- Solid PTFE
- HALAR
- ETFE
- PFA
- PVDF
- PP (Food Grade)
Lining Options
Available lining options include:
- PCDF
- PP
- PFA
- Teflon
Zero Hold Up Sparkler Filter
Our Zero Hold Up Sparkler Filters are available in different configurations with suitable numbers of plates according to the required holding capacity and filtration area.
Available Diameters
Suitable numbers of plates can be provided according to the actual filtration requirements.
- 8"
- 14"
- 18"
- 24"
- 33"
Pump Options
Various pump options are available, including:
Pumps can also be provided according to specific requirements.
- KSB
- ANTICO
- QVC
- Flurolined
- Sulzer
- Johnson
- Alfa Laval
Qualification Documents
- IQ
- DQ
- OQ
- FAT Protocol
Accessories
The Zero Hold Up Sparkler Filter can be supplied with a range of accessories, including:
- Pressure Gauge
- Safety Valve
- Air Vent
- Ball Valves
- Sampling Valve
- Filter Media (PP / Cellulose)
- Suitable Elastomers: Silicone / PTFE / EPDM / VITON
Usage
Zero Hold Up Sparkler Filters are used for filtration applications across a wide range of industries, including:
The filter is used to separate impurities from liquids, with the filter media retaining the impurities while allowing the filtrate to pass through.
The appropriate Sparkler Filter model can be suggested based on the actual requirements for holding capacity and filtration area.
- Pharmaceuticals
- Biotechnology
- API
- Bulk Drugs
- Chemicals
- Distilleries
- Food
- Other related industries
Zero Hold Up Sparkler Filters for Pharmaceutical & Industrial Filtration
Advance Expertise Technology offers a range of GMP model Zero Hold Up Sparkler Filters with multiple material-of-construction, coating, lining, pump and accessory options.
With configurations available in different diameters and suitable numbers of plates, the appropriate model can be selected according to the required holding capacity and filtration area.
Frequently Asked Questions
What is a Zero Hold Up Sparkler Filter?
A Zero Hold Up Sparkler Filter is a filter used to filter impure liquids. The filter media holds back impurities while allowing the filtrate to pass through.
Which industries use Zero Hold Up Sparkler Filters?
Zero Hold Up Sparkler Filters are used in pharmaceuticals, biotechnology, API, bulk drugs, chemicals, distilleries, food and other related industries.
What materials are available for Sparkler Filters?
Available materials of construction include SS304, SS316, SS316L, HASTELLOY, PP and Solid PTFE.
What coating options are available for wetted parts?
Coating options include HALAR, ETFE, PFA, PVDF and PP (Food Grade). Hastelloy is also available for friction parts and other requirements.
What lining options are available?
Available lining options include PCDF, PP, PFA and Teflon.
What sizes are available?
Sparkler Filters are available in diameters of 8", 14", 18", 24" and 33", with suitable numbers of plates.
What qualification documents are available?
Qualification documents include IQ, DQ, OQ and FAT Protocol.
