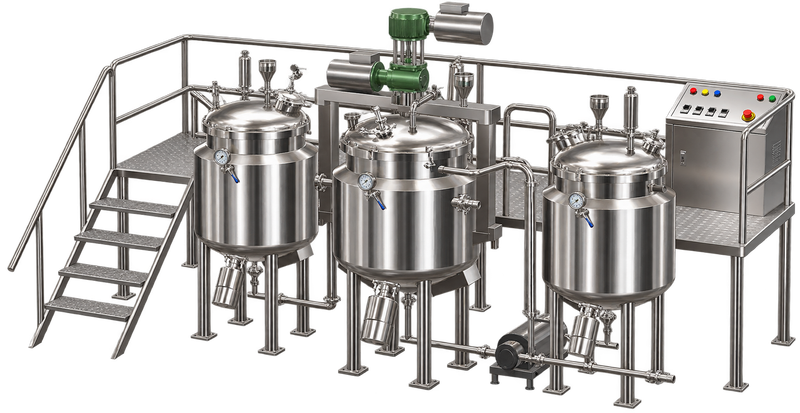

Ointment & Cream Manufacturing Plant
The Ointment & Cream Manufacturing Plant is designed for the Pharmaceutical, Cosmetics and Consumer Care Industries for manufacturing a wide range of products requiring controlled mixing, homogenization and emulsification. The plant is suitable for the production of:
Overview
ADVETPL provides the plant in different configurations to accommodate production requirements, including R&D, Pilot, Single and Double type models, as well as solutions developed according to client requirements.
The equipment combines process vessels, agitation and homogenization capabilities into an integrated manufacturing system. The entire plant can be operated through a centralized operating panel, supporting coordinated plant operation.
- Ointments
- Creams
- Lotions
- Toothpaste, including medicated and herbal products
- Other emulsions and homogenized products
Types & Configurations
ADVETPL offers the Ointment & Cream Manufacturing Plant in configurations suited to different production and development requirements.
R&D Model
An R&D model is available for development and research requirements.
Pilot Model
A Pilot model is available for pilot-scale requirements.
Single / Double Type Models
Single and Double type models are available, with the configuration selected according to the client's requirements.
Customized Configuration
The plant can also be supplied as per client requirements, allowing the configuration to be developed around the intended process.
Usage
The Ointment & Cream Manufacturing Plant is used across:
It is suitable for manufacturing ointments, creams, lotions, toothpaste and other emulsions and homogenizations.
For products such as high-viscosity toothpaste, an optional Contra Anchor is available.
- Pharmaceutical Industry
- Cosmetics Industry
- Consumer Care Industry
Key Features & Construction
The plant is available with SS 304, SS 316 and SS 316L material of construction.
Key design and process features include:
- Capacity: 5 to 5000 kg
- Vessel design as per ASME guidelines
- Seamless-quality pipe fittings
- Internally Electro-Polished pipe fittings
- Tri-clover ended joints
- Centralized operating panel
- Semi contra rotary anchor type agitator with open-slot scraper design
- Pre-Mix vessels with top/bottom stirrer
- Inbuilt Homogenizer or Inline Homogenizer
- Safety Interlocks
- Qualification documents including IQ, DQ, OQ & FAT Protocol
Optional Items & Accessories
ADVETPL can provide a comprehensive range of optional items and accessories according to the plant configuration and client requirements:
- Weighing Facility (Load Cell)
- VFD for all Anchor and Homogenizer
- Contra Anchor for high-viscous products like toothpaste
- PLC-based control with touch-screen HMI and SCADA packages
- 21 CFR Part 11 Provision & Compliance
- Top Dish for Pre-Mix Vessels
- Thermowell & Thermosiphon
- Vent Filters
- FLP Panel
- Utility Pipeline
- Fully Automatic Plant with actuated Valve
- Branded/reputed make accessories, including:
- VFD
- Load Cell
- Valves
- Pressure Gauge
- Steam Trap
- Diaphragm Valve
- Spray Ball
- Sight Glass
- Wiper
- Sensor
- Electrical Components
Frequently Asked Questions
What is the capacity of the Ointment & Cream Manufacturing Plant?
The plant is available with a capacity range of 5 to 5000 kg.
Which industries can use the Ointment & Cream Manufacturing Plant?
The plant is designed for the Pharmaceutical, Cosmetics and Consumer Care Industries.
What products can be manufactured using this plant?
It is suitable for producing ointments, creams, lotions, toothpaste, including medicated and herbal toothpaste, and other emulsions and homogenizations.
What material options are available?
The plant is available in SS 304, SS 316 and SS 316L.
Is homogenization available?
Yes. The plant can be supplied with an inbuilt homogenizer or inline homogenizer.
Are R&D and Pilot models available?
Yes. R&D, Pilot, Single and Double type models are available, along with configurations based on client requirements.
What qualification documents are provided?
The plant includes qualification documentation comprising IQ, DQ, OQ & FAT Protocol.
Can the plant be supplied with automation and control options?
Yes. Optional control solutions include PLC-based systems with touch-screen HMI and SCADA packages, as well as a fully automatic plant with actuated valves.
