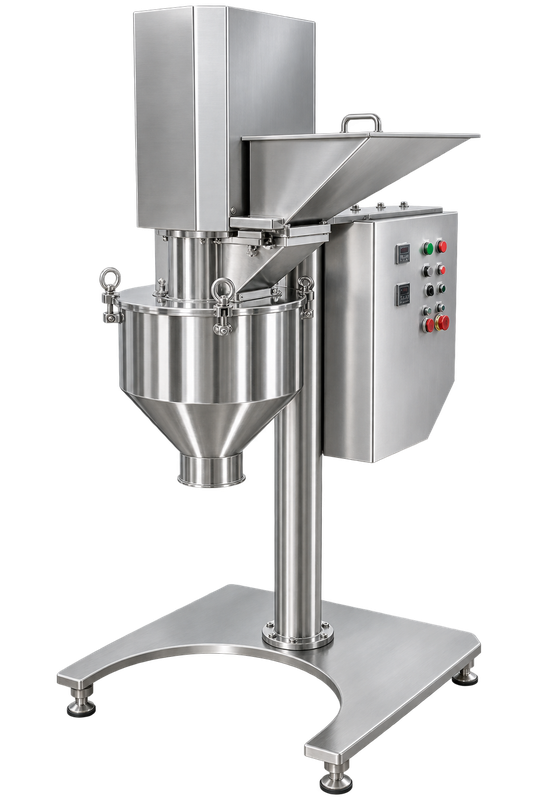

Multi Mill
The Multi Mill is a self-contained, portable unit designed for high-speed granulating, pulverizing, mixing, shredding and chopping of a wide range of wet and dry materials. The machine operates using variable-force swing beaters with both knife and impact edges. These beaters rotate within a selected screen to achieve the required size reduction.
Overview
Material is fed through the hopper, where it is shredded and milled by the rotating beaters. The combination of knife and impact edges supports the different processing actions performed by the Multi Mill.
The unit is designed to perform these operations without special attachments, making it a versatile processing machine for applications requiring size reduction and material processing.
Types & Configurations
ADVETPL offers the Multi Mill in different configurations according to operating and process requirements.
Capacity Options
The available capacity options are:
- 1 HP
- 3 HP
- 5 HP
- 7.5 HP
Material of Construction
The Multi Mill is available in:
- SS304
- SS316
- SS316L
- Hastelloy
Drive Configurations
Different drive arrangements are available:
A full SS construction option is also available, including the Bearing Housing and Motor Mounting Plate.
- Belt Drive
- Direct Drive with VFD
Screen Options
Sieves are available from 0.3–12 mm to achieve the required size reduction.
Usage
The Multi Mill can be used for processing a wide range of wet and dry materials through:
The material enters through the hopper and passes through the rotating swing beaters and selected screen to obtain the required size reduction.
For material charging requirements, a vacuum loading system is available as an optional configuration.
- High-speed granulating
- Pulverizing
- Mixing
- Shredding
- Chopping
- Size reduction
Key Features & Optional Accessories
ADVETPL provides multiple options and accessories to configure the Multi Mill according to client requirements.
Drive & Speed Control
- Belt Drive
- Direct Drive with VFD
Full Stainless Steel Construction
A full SS construction is available, including:
- Bearing Housing
- Motor Mounting Plate
Flameproof & Electrical Options
Optional arrangements include:
- Flameproof Motor
- FLP Starter with Reversible Switch
- FLP Panel
- Magnetic Grill for Outlet
Mechanical Seal
A Mechanical Seal is available as an optional item.
Sieves
Sieves are available in the range of 0.3–12 mm.
Vacuum Loading
A Vacuum Loading System is available for charging the material into the Multi Mill.
Qualification & Documentation
The Multi Mill is available in a cGMP Model, with design as per ASME guidelines.
Qualification documentation includes:
- IQ Protocol
- DQ Protocol
- OQ Protocol
- FAT Protocol
Frequently Asked Questions
What is a Multi Mill used for?
The Multi Mill is used for high-speed granulating, pulverizing, mixing, shredding and chopping of wet and dry materials.
What principle does the Multi Mill use?
It operates using variable-force swing beaters with knife and impact edges rotating within a selected screen for size reduction.
What HP options are available?
The Multi Mill is available in 1, 3, 5 and 7.5 HP configurations.
What MOC options are available?
The available MOC options are SS304, SS316, SS316L and Hastelloy.
What sieve sizes are available?
Sieves are available from 0.3 to 12 mm.
Is a cGMP model available?
Yes. A cGMP Model with design as per ASME guidelines is available.
What optional accessories are available?
Options include Belt Drive, Direct Drive with VFD, Full SS Construction, Flameproof Motor, FLP Starter with Reversible Switch, FLP Panel, Magnetic Grill, Mechanical Seal and Vacuum Loading System.
What qualification documents are provided?
Qualification documentation includes IQ, DQ, OQ and FAT Protocol.
